The Importance and Testing Standards of Automotive Electronic Components

In the automotive electronics industry, the testing of certain core components is crucial. It not only involves the accuracy of product performance but also directly relates to driver safety and the overall stability of the vehicle. As vital optoelectronic components within automobiles, LEDs and optocouplers must adhere strictly to the AEC-Q102 standard to ensure they maintain excellent performance under varying driving conditions.

LED Applications in Automobiles

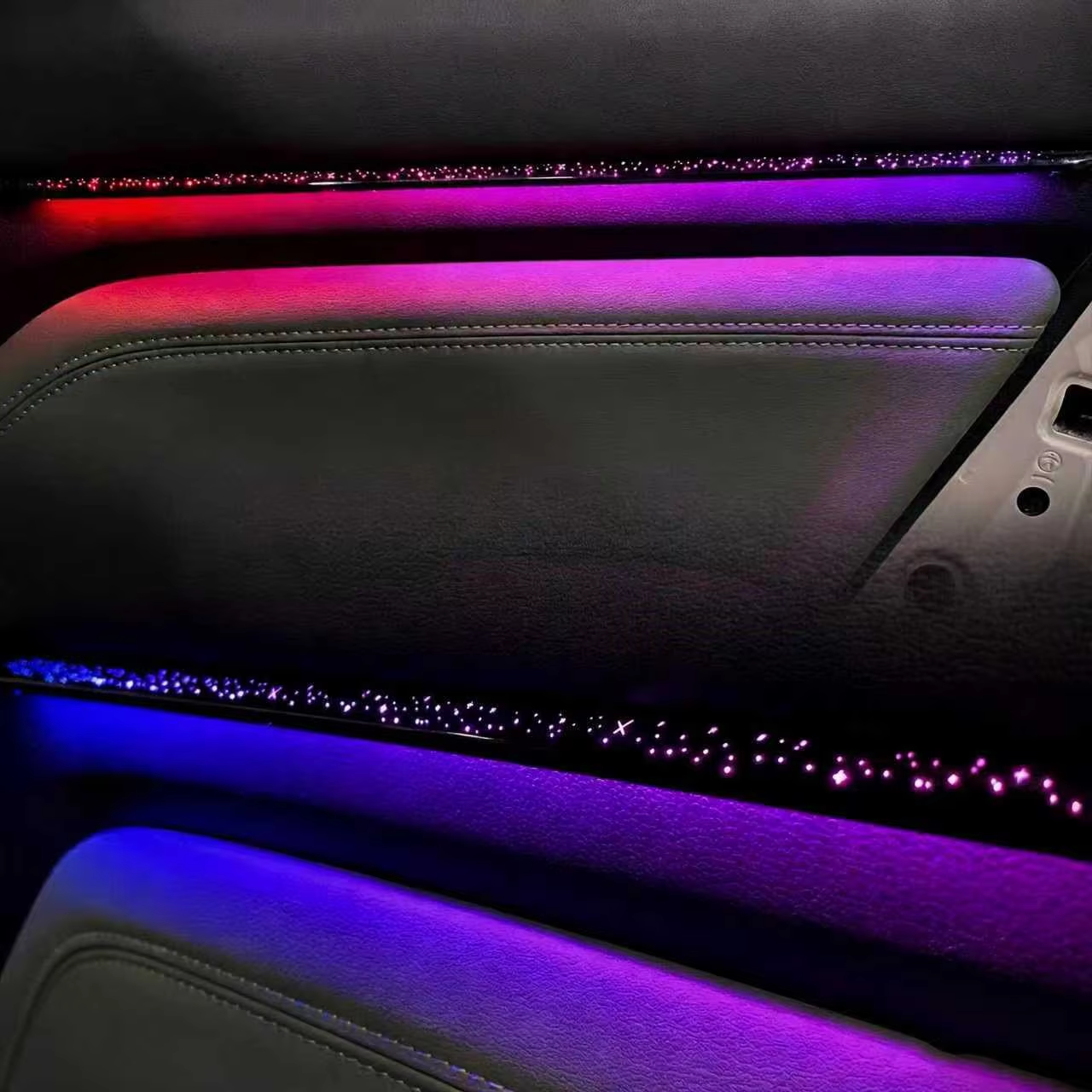

LED components are widely used in automobiles. They are not only used in vehicle lighting systems, including headlights, taillights, turn signals, brake lights, and interior lighting, but also extensively in indicator lights and signal displays. LEDs, with their high brightness, low energy consumption, long lifespan, and fast response time, provide safer and more energy-efficient lighting solutions for automobiles. Furthermore, the durability and stability of LEDs allow them to maintain performance even in harsh automotive environments. Simultaneously, the high controllability of LEDs facilitates the realization of more complex lighting effects and intelligent lighting systems, enhancing the driving experience and vehicle exterior design.

LED AEC-Q102 Testing Requirements:

1. Luminous Performance Testing: Tests the luminous flux, luminous intensity, color temperature, and color rendering index of the LED to ensure its optical performance meets standards.

2. Electrical Performance Testing: Measures the forward voltage, operating current, and power consumption of the LED to evaluate its stability under specified current.

3. Thermal Performance Testing: Evaluates the LED's heat dissipation capacity and performance in high-temperature environments through thermal resistance and thermal stability testing.

4. Lifetime Testing: Predicts the LED's lifespan through accelerated aging testing to ensure its long-term reliability.

5. Environmental Adaptability Testing: Includes temperature shock and damp heat testing to simulate the LED's performance under extreme environmental conditions.

The Role of Optocouplers in Automotive Electronic Systems: As a key component for electrical isolation, optocouplers primarily function as electrical isolation and signal transmission devices in automotive electronic systems. They protect sensitive circuits from voltage fluctuations and electromagnetic interference, while transmitting control signals between different electrical systems, ensuring stable vehicle operation and accurate signal execution, which is crucial for improving vehicle safety and reliability.

The Role of Optocouplers in Automotive Electronic Systems

1. Transmission Characteristic Testing: Evaluating the optocoupler's current transfer ratio, response time, linearity, etc., to ensure signal transmission accuracy.

2. Isolation Performance Testing: Ensuring the optocoupler's electrical isolation performance through high-voltage testing.

3. Thermal Performance Testing: Testing the optocoupler's thermal resistance and thermal stability to evaluate its performance under high-temperature operating conditions.

4. Durability Testing: Evaluating the optocoupler's physical stability through mechanical shock and vibration testing.

5. Environmental Adaptability Testing: Evaluating the optocoupler's performance under different environmental conditions, such as temperature cycling and damp heat testing.

Conclusion: With the continuous advancement of automotive electronics technology, the testing requirements for key components such as LEDs and optocouplers are becoming increasingly stringent.
